Brand Name : Beijun
Model Number : BJ90A
Certification : CE,ISO,TUV
Place of Origin : China
MOQ : 1
Supply Ability : 100 Set/Sets per Month
Delivery Time : 14-30 days
Packaging Details : Customized packaging
Product configuration description : 287 KWh single motor
Transmission model : TS-0725
Front axle rated load (Kg) : 20000*1
Rated load of rear axle (Kg) : 35000*2
Tire specifications : Radial tire 14.00R25
Body size (mm) : 5800*3200*1800
Total mass (kg) : 90000
Curb weight (kg) : 35000
90 ton mining dump truck Heavy Duty dump truck Electric mining truck is a powerful and sturdy vehicle
Product Features:
The 90 Ton Mining Tipper Heavy Duty Dumper Electric Mining Truck is a powerful and robust vehicle that is designed for use in mining and heavy-duty industrial applications. With a massive 90-ton capacity, this truck can handle large loads of materials in a single trip, making it an efficient and productive option for companies in the mining industry.
One of the key advantages of the electric mining truck is its zero-emission operation. With no harmful emissions, this truck can help companies reduce their carbon footprint and comply with increasingly strict environmental regulations. Additionally, its advanced safety features, including collision avoidance systems and advanced braking technology, make it a safer option for workers and other equipment on the job site.
The electric mining truck also offers significant cost savings over traditional diesel-powered trucks. With lower operating and maintenance costs, this truck can help companies reduce their overall expenses and increase their profitability. Furthermore, its energy recovery system can help extend battery life and reduce the need for frequent charging, further enhancing its efficiency and cost-effectiveness.
Overall, the 90 Ton Mining Tipper Heavy Duty Dumper Electric Mining Truck is an impressive and capable vehicle that can help companies in the mining industry operate more efficiently, safely, and sustainably. As the demand for environmentally friendly and cost-effective equipment continues to grow, electric trucks like this one will likely become increasingly popular among companies looking to enhance their operations.
Specification of Beijun Electric Mining Truck | ||
Product configuration description | 287 KWh single motor | 350 KWh double motor |
Product number | BJ90A | BJ90B |
Best working Application | Heavy downhill | Heavy downhill |
Dynamic parameters | ||
Power system model | single motor | Dual motor |
Rated power and speed kW/rpm | 360/1492 (peak) 250/1492 (rated) | 2 x 300/4670 (peak) 2×225/4670 (rated) |
Maximum torque and speed Nm/rpm | 2800/1492 (peak) 1600/1492 (rated) | 2 x 700/4670 (peak) 2×460/4670 (rated) |
Battery capacity kwh/displacement L | 287 | 350 |
Gearbox | ||
Transmission model | TS-0725 | 7D20K |
Drive axle | ||
Front axle rated load (Kg) | 20000*1 | 20000*1 |
Rated load of rear axle (Kg) | 35000*2 | 35000*2 |
Tire specifications | Radial tire 14.00R25 | Radial tire 14.00R25 |
Cargo box parameters | ||
Body size (mm) | 5800*3200*1800 | 5900*3200*1800 |
Standard bucket capacity flat pack/stack (m³) | 30/36 | 30/36 |
Weight parameter | ||
Total mass (kg) | 90000 | 90000 |
Curb weight (kg) | 35000 | 36000 |
Loading mass (kg) | 55000 | 54000 |
Bridge load front/middle/rear (t) | 20/35/35 | 20/35/35 |
Operational performance | ||
Maximum speed km/h | ≤40 | ≤45 |
Maximum grade% | ≥30 | ≥35 |
Turning radius (front) mm | ≤11000 | ≤11000 |
![]() |

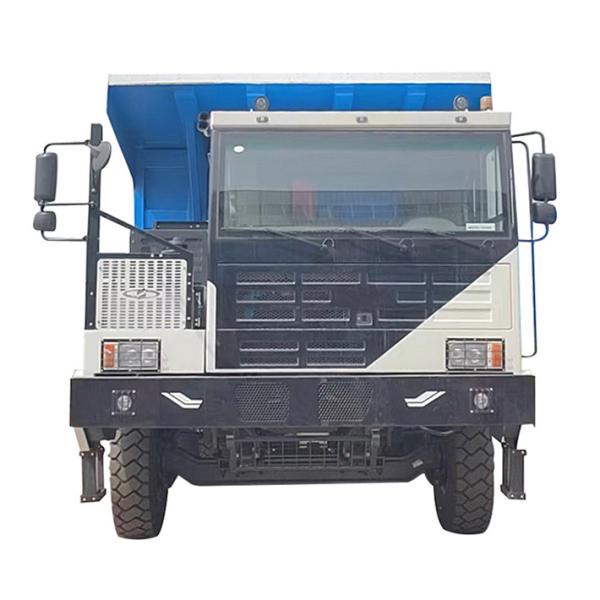

Powerful Sturdy Electric Mining Truck 90 Tons High Performance Images |
