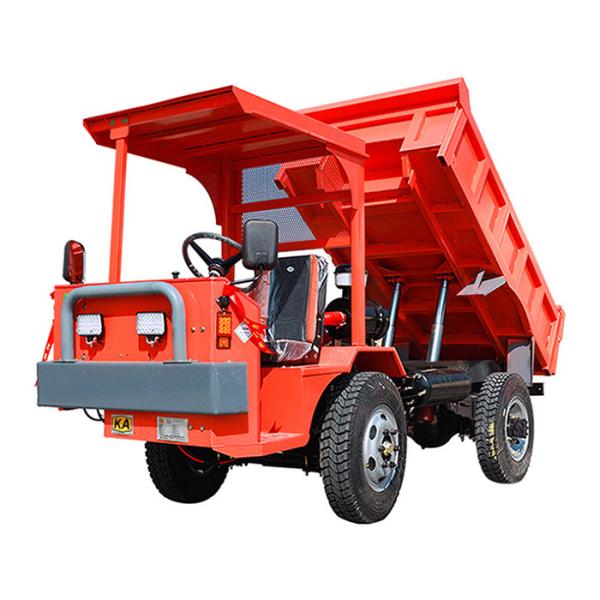

Mini 3 Ton Dump Truck 63HP

Name: Mini 3 Ton Dump Truck 63HP
Brand: Beijun
Price: 1000 USD

Quality Mini 3 Ton Dump Truck 63HP wholesale

Brand Name : Beijun

Model Number : UQ-3

Certification : CE,ISO

Place of Origin : China

MOQ : 1

Price : USD 1000-7000 Set

Payment Terms : L/C, T/T

Supply Ability : 1000 Set/Sets per Month

Delivery Time : 10 days

Packaging Details : Customized packaging

Engine Model : CHANGCHAI 490

Engine Power : 63 HP

Transmission Model : Ningjing 130

Drive Mode : 4x4

Dimension of Bottom Spring Plate : Length 71mm, Width 11mm

Loading Capacity : 3 Tons

Type of Bucket : U type Bucket

Thickness of Bucket Steel Plate : bottom 6mm side 5mm

Contact Now

Product parameters of 3 Ton Mini Wheel Dumper Truck Use Vehicle Hydraulic Diesel Underground Mine Small Dump Truck For Mining

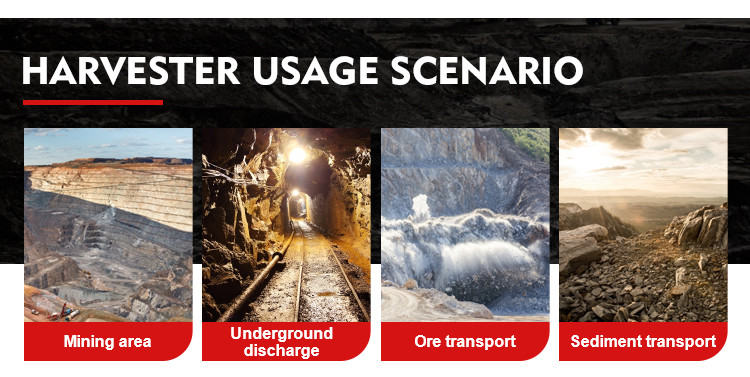

4x4 mining dump truck mini dumper on wheels is suitable for underground roadway mine, iron ore mine and rare metal mine. The truck has many advantages, such as high power, small footprint, compact sound, convenient and flexible operation, energy-saving and cost-saving, and convenient operation. The dump truck can be equipped with different engines according to the use environment and use, which can be customized according to customer requirements

Model	UQ-3

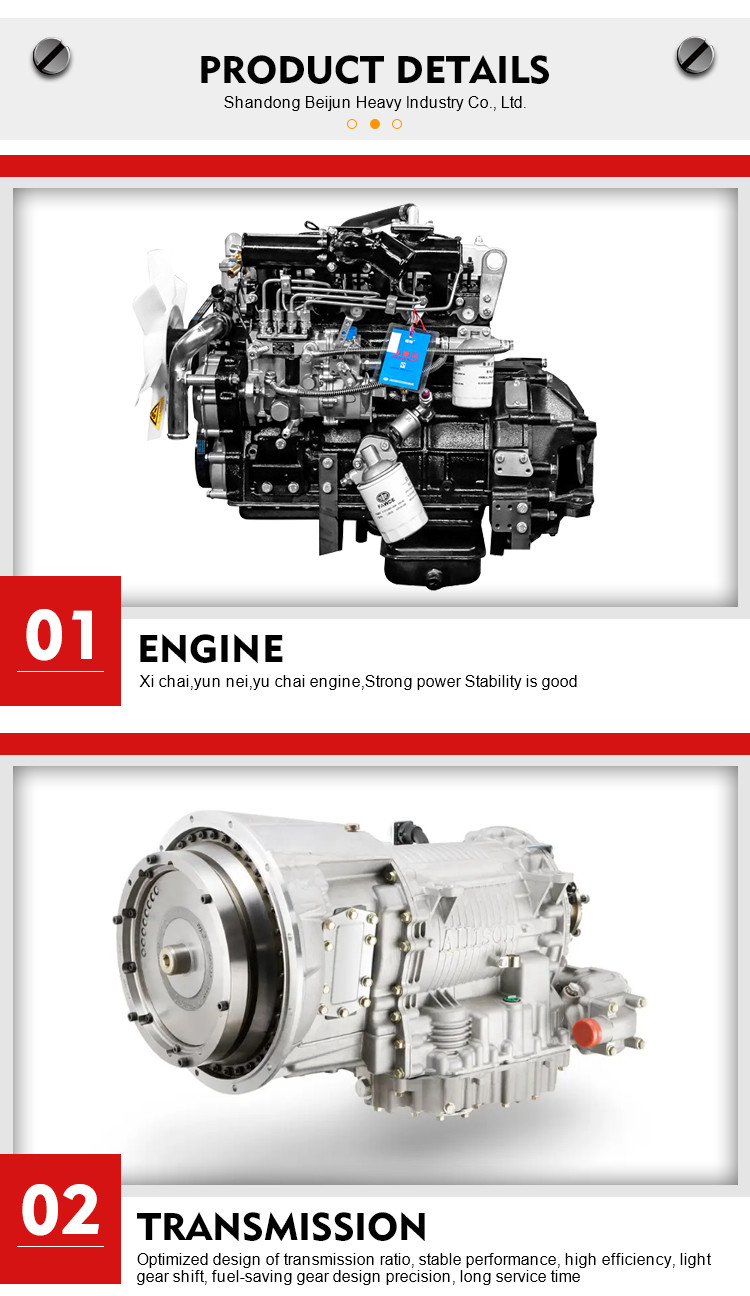

Engine Model	CHANGCHAI 490
Engine Power	63 HP
Transmission Model	Ningjing 130
Transmission Gear	4 Forward Gear, 1Back Gear,Rear High Speed Controller
Drive Mode	4x4

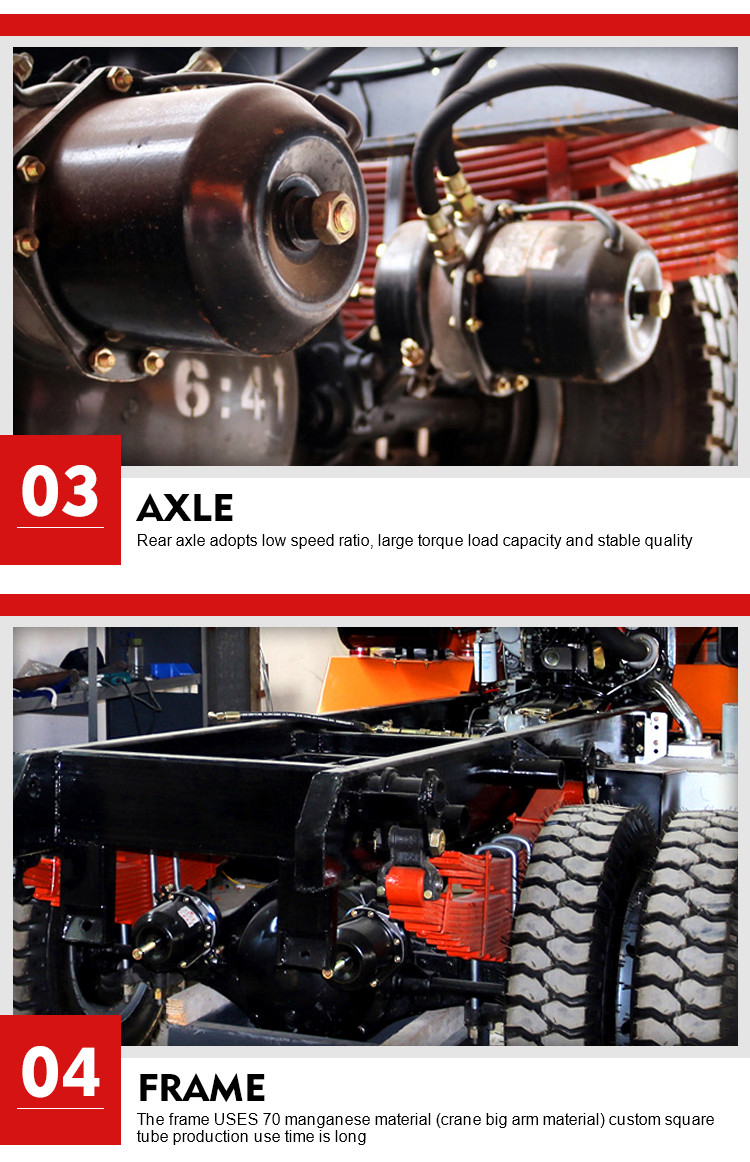

Front Axle Model	CHITONG ISUZU Axle
Rear Axle Model	CHITONG ISUZU Axle
Tire Model	700x16 Line Tire, Rear Single Tyre One Side,
No.of Bottom Spring Plate	Front 7 PCS, Rear 8 PCS, Spare 6PCS
Dimension of Bottom Spring Plate	Length 70mm, Width 10mm
Size of the Bucket:Length×width×height	2400mm1300mm450mm
Type of Bucket	U type Bucket
Thickness of Bucket Steel Plate	bottom 6mm side 4mm
Unloading Type	Hydraulic Double Top Dump
Steering Type	Hydraulic power steering
Braking Type	Air Brake
Cabin	Canopy
Driving Position	Left Hand Drive
Cooling sytem	Standard Water Cooling System
Loading Capacity	3 Tons

Mini 3 Ton Dump Truck 63HP
